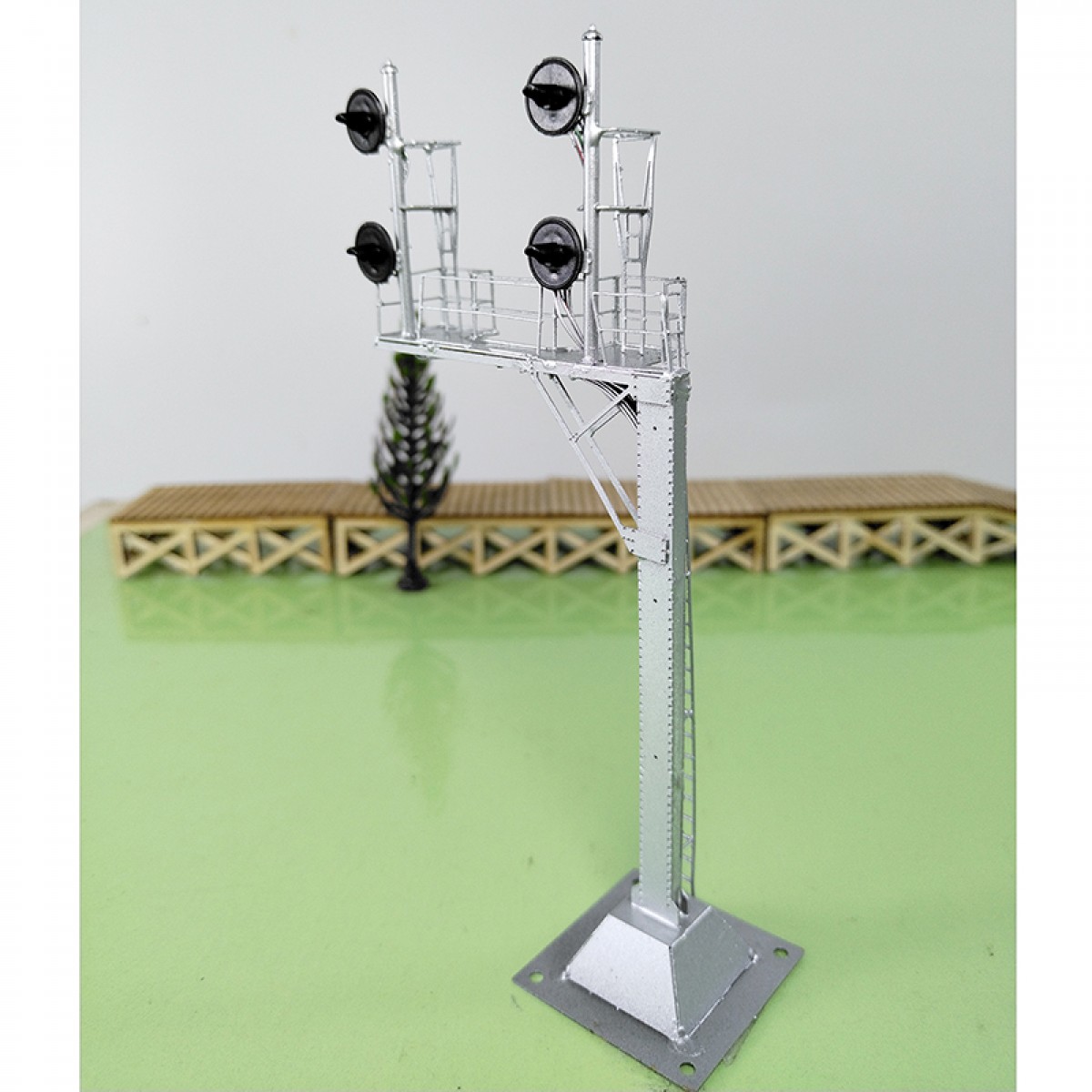

1 x HO scale searchlight cantilever signal tower metal 3-colors 2 tracks #CS22

Product Code: WH156339998896

Availability: 100

overview

price for 1 complete signal ( common anode )Tri-Color SMD LEDs madeeach target may show Green/Amber/Red light.the black wires are Common Anode wires, the color wires are cathode wires. ( message me right after payment if you need Common Cathode signa...

$36.99

Qty

Description
Reviews (0)

price for 1 complete signal ( common anode )

Tri-Color SMD LEDs made
each target may show Green/Amber/Red light.
the black wires are Common Anode wires, the color wires are cathode wires. ( message me right after payment if you need Common Cathode signal ), must wire 470 ohm 1/4W resistors with Green LED, warm white LED and 510 ohm 1/4W resistors with Red and Yellow LED if you need the green light shows along with the red or yellow light, or control them with my Master Board.
body color: silver ( default ), or please message me right after payment if you need it in black or brown.

Specifications:

Brand: WeHonest Model.
Size: Please check it from the above photo.
Reference Scale: Suitable for OO/HO scale layouts.
Operating Voltage: 3V DC only.
( do NOT use it on 12V DC directly, must wire a 620 ohm resistor with the black wire if use on 12V DC )
Operating Current for each light: 20mA.
Material: steel

Package included:
